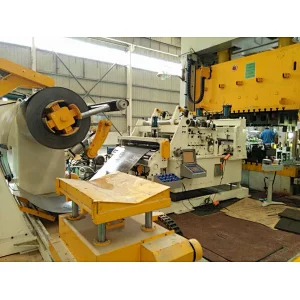

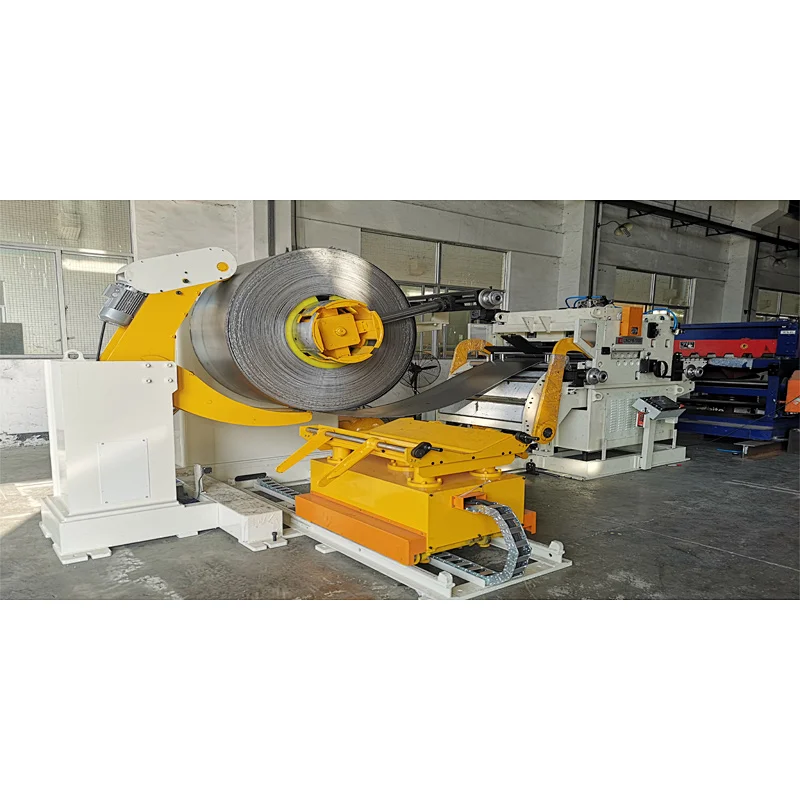

LNCF8 series 3 in 1 Uncoiler Straightener Feeder with coil car
LNCF8 series 3 in 1 Uncoiler Straightener Feeder with coil car
LNCF8 series 3 in 1 Uncoiler Straightener Feeder with coil car
LNCF8 series 3 in 1 Uncoiler Straightener Feeder with coil car
LNCF8 series 3 in 1 Uncoiler Straightener Feeder with coil car
LNCF8 series 3 in 1 Uncoiler Straightener Feeder with coil car
LNCF8 series 3 in 1 Uncoiler Straightener Feeder with coil car
LNCF8 series 3 in 1 Uncoiler Straightener Feeder with coil car
LNCF8 series 3 in 1 Uncoiler Straightener Feeder with coil car

LNCF8 series 3 in 1 Uncoiler Straightener Feeder with coil car

Model NO.
TNCF8
Price:
US $ 42300.00-89000.00 / set
Delivery
EXW, FOB, CIF
Minimum order quantity
1 set
Supply Ability
300 set / Year
Country of Origin
Guangdong China
Stock Time
30 Days
Quantity:

3 in 1 combined decoiler leveler feeder for stamping metal parts,sheet automatic 3 in 1 decoiler and straightener,metal stamping press feeder,press feeding line,3 in 1 coil processing line,leveling feeder line 3 in 1,3 in 1 feeder,coil processing equipment

1. Upper roller adjustment by digital watch.
2. Coil width adjusted by double handle wheel with precise scre word.
3. Pass line can be adjusted by the lifter driven by motor.
4.Coil side guide use one set hollow rolls mechanical back gauge device.
5. Pinch roll and straightener roll material:high-strength alloy bearing steel withhard chrome plating.
6.Hydraulic coil arm device.
7. Motorized Snuber roll.
8.Hydraulic guider.
9. Hydraulic peeler table.
10. Mitsubishi PLC control feeding program from Japan.
11. Feed accuracy controlled by Japan YASKAWA servo motor with precise planetary reducer.

机型model

LNCF8-400

LNCF8-600

LNCF8-800

LNCF8-1000

LNCF8-1300

LNCF8-1600

最大材料宽度.max.material width(mm)

400

600

800

1000

1300

1600

材料厚度material thickness(mm)

0.8-8.0mm

料架载重coil weight(KG)

5000/8000

8000/10000/15000

卷料内径coil inner Diameter(mm)

508mm

卷料外径coil outer diameter(mm)

1500mm

扩张方式(expansion method)

油压扩张hydraulic expansion

料架感应方式(uncoiler sensor)

光电感应photo sensor

台车coil car

选配optional

剪板机shear

选配optional

整平速度Speed(m/min)

20m/min
