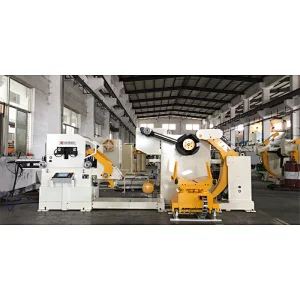

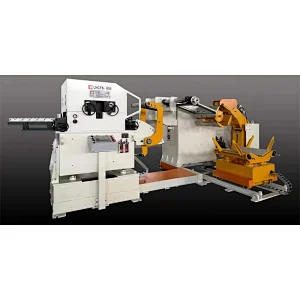

LNCF6 series 3 in 1 Straightener Feeder&Uncoiler
LNCF6 series 3 in 1 Straightener Feeder&Uncoiler
LNCF6 series 3 in 1 Straightener Feeder&Uncoiler
LNCF6 series 3 in 1 Straightener Feeder&Uncoiler
LNCF6 series 3 in 1 Straightener Feeder&Uncoiler
LNCF6 series 3 in 1 Straightener Feeder&Uncoiler
LNCF6 series 3 in 1 Straightener Feeder&Uncoiler
LNCF6 series 3 in 1 Straightener Feeder&Uncoiler
LNCF6 series 3 in 1 Straightener Feeder&Uncoiler
LNCF6 series 3 in 1 Straightener Feeder&Uncoiler
LNCF6 series 3 in 1 Straightener Feeder&Uncoiler

LNCF6 series 3 in 1 Straightener Feeder&Uncoiler

Model NO.
TNCF6
Price:
US $ 45300.00-87600.00 / set
Delivery
EXW, FOB, CIF
Minimum order quantity
1 set
Supply Ability
300 set / Year
Country of Origin
Guangdong China
Stock Time
30 Days
Quantity:

I. Feeding feature by PLC program from MITSUBISHI

1.NC Servo feeding. Operating with Computerize Numerical Control by PLC program from MITSUBISHI made in Japan. The electrical parts from YASKAWA made in Japan including Servo motor, driver, encoder, interface screen and so on.

2.High precision feeding: to meet the coming of hi-tech industry, controlled by computer closed circuit feedback system to keep precision degree within +/-0.15mm
3.Feeding function: input 20 sets of different feed length, each group provides 999 times for punching or cutting to satisfy processing of special products.

4.High efficiency release device, match with adjustment of signal from the cutter or press machine through cable wire.

5.Setting of feed length: directly input feed length on the control plate, and then it can reach needed distance, feed length max 9999.99mm. speed max 20m/min

II. Straightening feature.

Features

1.3 in 1 uncoiler and straightener saves space and increase productivity.

2. Straightener and thickness adjustment by 4 worm gear micro-adjuster withreading 0.1mm advance reference indicator.

3.Feed and straightener roll with a hard chrome plated.

4.High rigid mechanical design sturdy construction, and high power output to secure proper straightening and feeding during the speed increasing efficiency.

5.Electric loop control system.

6.Power hold down arm device

7.Inverse curve roll, easy to set up the curve up or down of feeding exit direction.

8.Feeding line easily adjusted by advance worm gear screw Jacks device

9.Coil Material Entry support Assembly can bring the material into pinch rollers Automatically to save man power and increase safety,

10.Coil side guide

11.Outgoing catenary to assist and support the material

12.A Clusster gear set maximizes transmission of horse power.

13.Transforme

机型model

LNCF6-400

LNCF6-500

LNCF6-600

LNCF6-800

LNCF6-1000

LNCF6-1300

LNCF6-1600

LNCF6-1800

LNCF6-2000

最大材料宽度.max.material width(mm)

400

500

600

800

1000

1300

1600

1800

2000

材料厚度material thickness(mm)

0.5-6.0mm

料架载重coil weight(KG)

5000/8000

8000/10000

10000/15000

15000/20000

卷料内径coil inner Diameter(mm)

508mm

卷料外径coil outer diameter(mm)

1500mm

扩张方式(expansion method)

油压扩张hydraulic expansion

料架感应方式(uncoiler sensor)

光电感应photo sensor

台车coil car

选配optional

剪板机shear

选配optional

整平速度Speed(m/min)

20m/min
