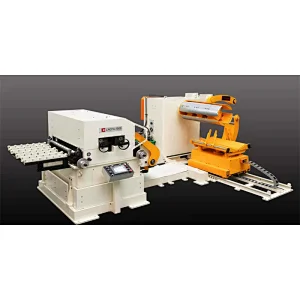

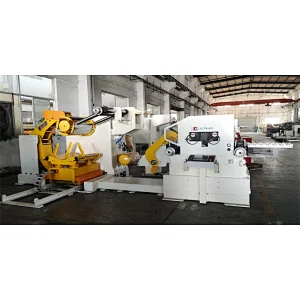

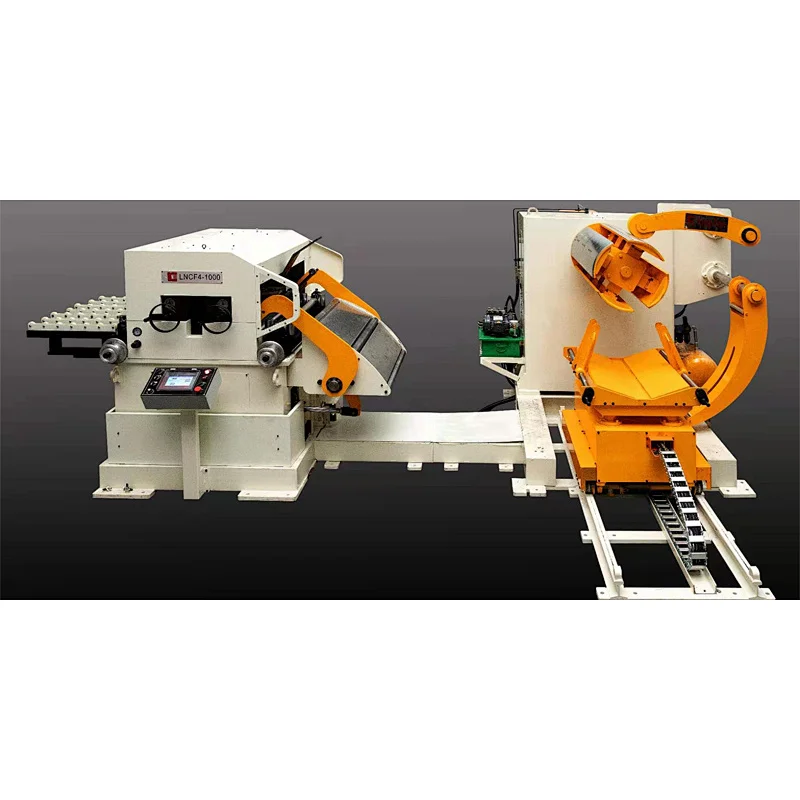

LNCF4A series 3 in 1 NC Feeder Straightener&Uncoiler
LNCF4A series 3 in 1 NC Feeder Straightener&Uncoiler
LNCF4A series 3 in 1 NC Feeder Straightener&Uncoiler
LNCF4A series 3 in 1 NC Feeder Straightener&Uncoiler
LNCF4A series 3 in 1 NC Feeder Straightener&Uncoiler
LNCF4A series 3 in 1 NC Feeder Straightener&Uncoiler
LNCF4A series 3 in 1 NC Feeder Straightener&Uncoiler
LNCF4A series 3 in 1 NC Feeder Straightener&Uncoiler
LNCF4A series 3 in 1 NC Feeder Straightener&Uncoiler

LNCF4A series 3 in 1 NC Feeder Straightener&Uncoiler

Model NO.
TNCF4A
Price:
US $ 45600.00-89650.00 / set
Delivery:
EXW, FOB, CIF
Minimum order quantity:
1 set
Supply Ability:
300 set / Year
Country of Origin:
Guangdong China
Stock Time:
30 Days
Quantity:

1. Upper roller adjustment by digital watch.

2. Coil width adjusted by double handle wheel with precise scre word.

3. Pass line can be adjusted by the lifter driven by motor
4. Uncoiler with four"A"steel backgauges.
5. Pinch roll and straightener roll material:high-strength alloy bearing steel with hard chrome plating.
6. Pneumatic coll arm device.
7. Mitsubishi PLC control feeding program trom Japan.
8. Feed accuracy controlled by Japan YASKAWA servo motor with precise planetary reducer.

机型model

LNCF4A-400

LNCF4A-500

LNCF4A-600

LNCF4A-800

LNCF4A-1000

LNCF4A-1300

最大材料宽度.max.material width(mm)

400

500

600

800

1000

1300

材料厚度material thickness(mm)

0.4-4.5mm

料架载重coil weight(KG)

5000

8000/10000

卷料内径coil inner Diameter(mm)

508mm

卷料外径coil outer diameter(mm)

1500mm

扩张方式(expansion method)

油压扩张hydraulic expansion

料架感应方式(uncoiler sensor)

光电感应photo sensor

台车coil car

选配optional

剪板机shear

选配optional

整平速度Speed(m/min)

20m/min
