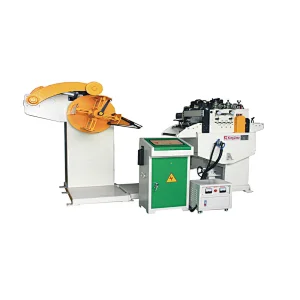

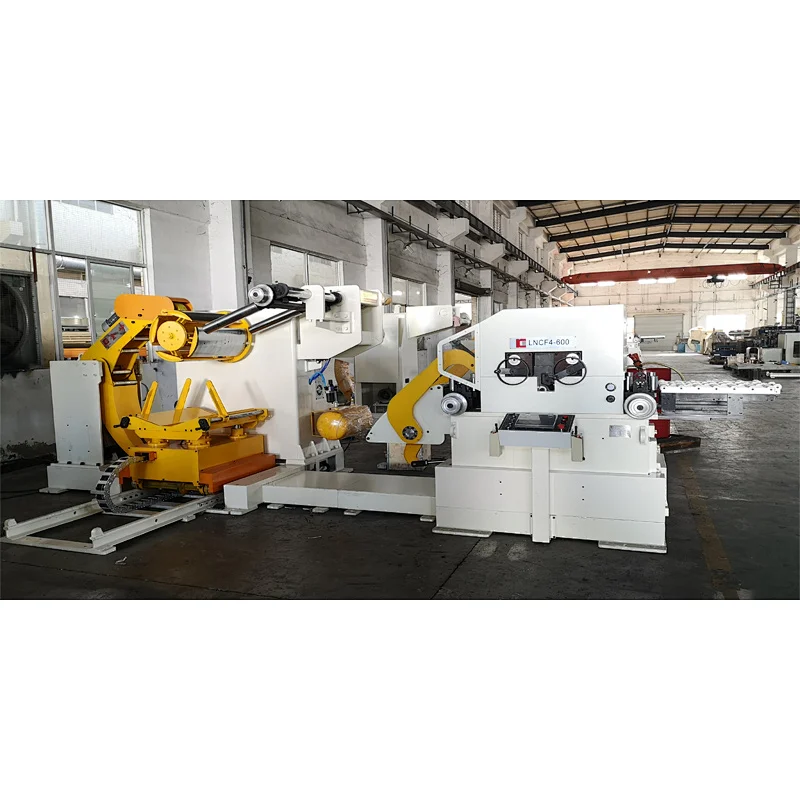

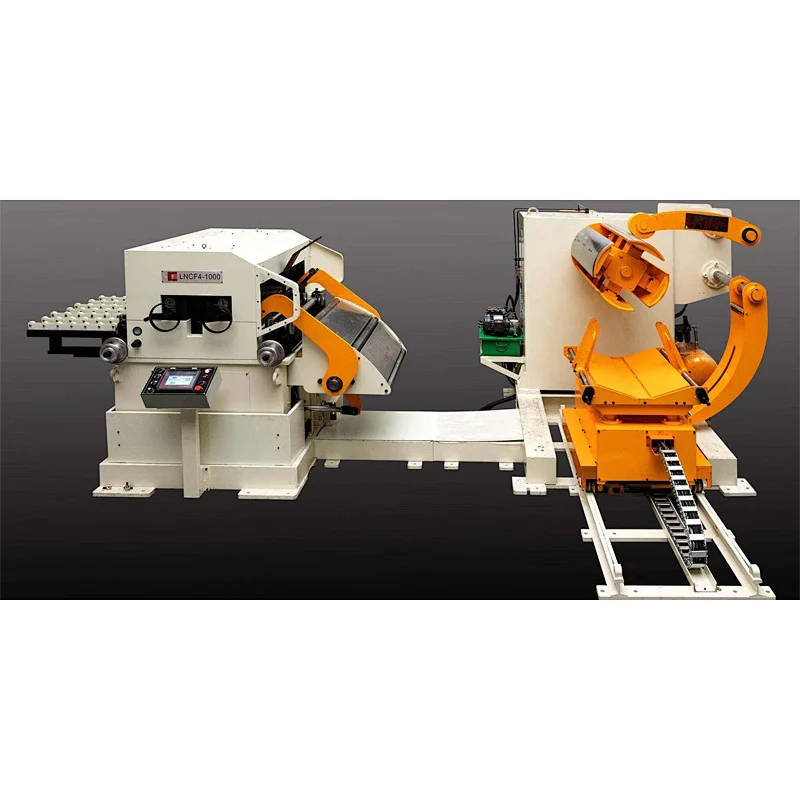

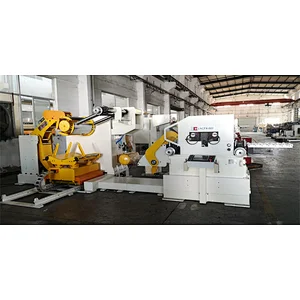

LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler
LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler
LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler
LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler
LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler
LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler
LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler
LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler
LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler
LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler
LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler

LNCF4 series 3 in 1 NC feeder Straightener&Uncoiler

Model NO.:
TNCF4
Price:
US $ 48500.00-85600.00 / set
Delivery:
EXW, FOB, CIF
Minimum order quantity:
1 set
Supply Ability:
300 set / Year
Country of Origin:
Guangdong China
Stock Time:
30 Days
Quantity:

3 in 1 combined decoiler leveler feeder for stamping metal parts,sheet automatic 3 in 1 decoiler and straightener,metal stamping press feeder,press feeding line,3 in 1 coil processing line,leveling feeder line 3 in 1,3 in 1 feeder,coil processing equipment

1. Upper roller adjustment by digital watch.
2. Coil width adjusted by double handle wheel with precise scre word.
3. Pass line can be adjusted by the lifter driven by motor.
4.Coil side guide use one set hollow rolls mechanical back gauge device.
5. Pinch roll and straightener roll material:high-strength alloy bearing steel withhard chrome plating.
6.Hydraulic coil arm device.
7. Motorized Snuber roll.
8.Hydraulic guider.
9. Hydraulic peeler table.
10. Mitsubishi PLC control feeding program from Japan.
11. Feed accuracy controlled by Japan YASKAWA servo motor with precise planetary reducer.

机型model

LNCF4-400

LNCF4-500

LNCF4-600

LNCF4-800

LNCF4-1000

LNCF4-1300

最大材料宽度.max.material width(mm)

400

500

600

800

1000

1300

材料厚度material thickness(mm)

0.4-4.5mm

料架载重coil weight(KG)

5000

8000/10000

卷料内径coil inner Diameter(mm)

508mm

卷料外径coil outer diameter(mm)

1500mm

扩张方式(expansion method)

油压扩张hydraulic expansion

料架感应方式(uncoiler sensor)

光电感应photo sensor

台车coil car

选配optional

剪板机shear

选配optional

整平速度Speed(m/min)

20m/min
