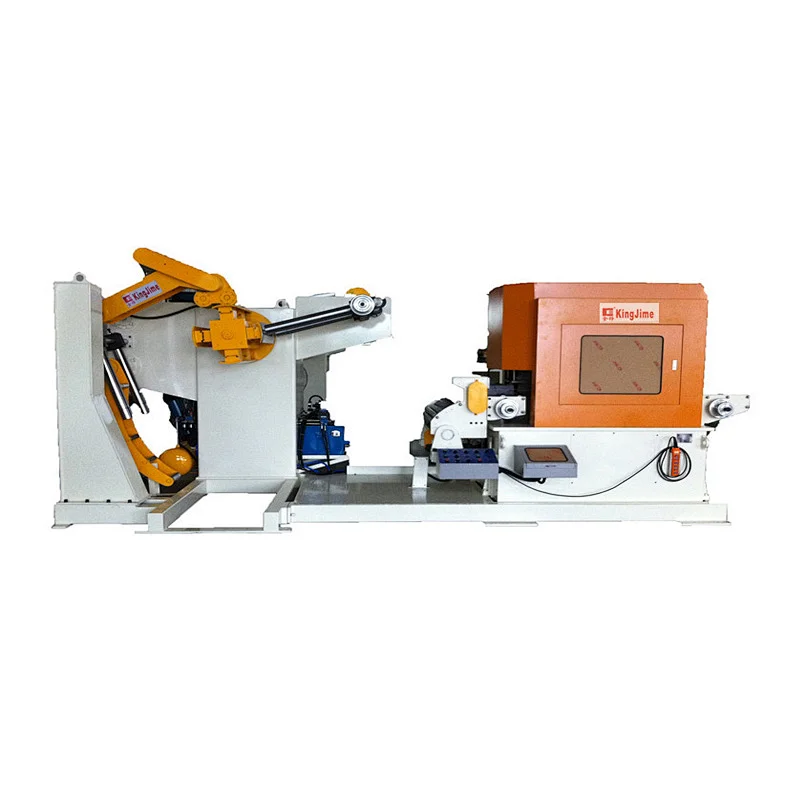

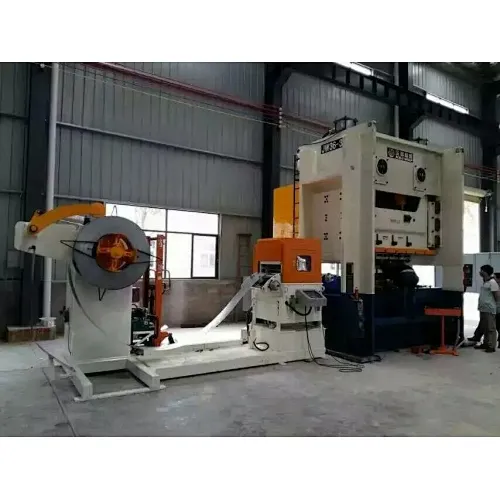

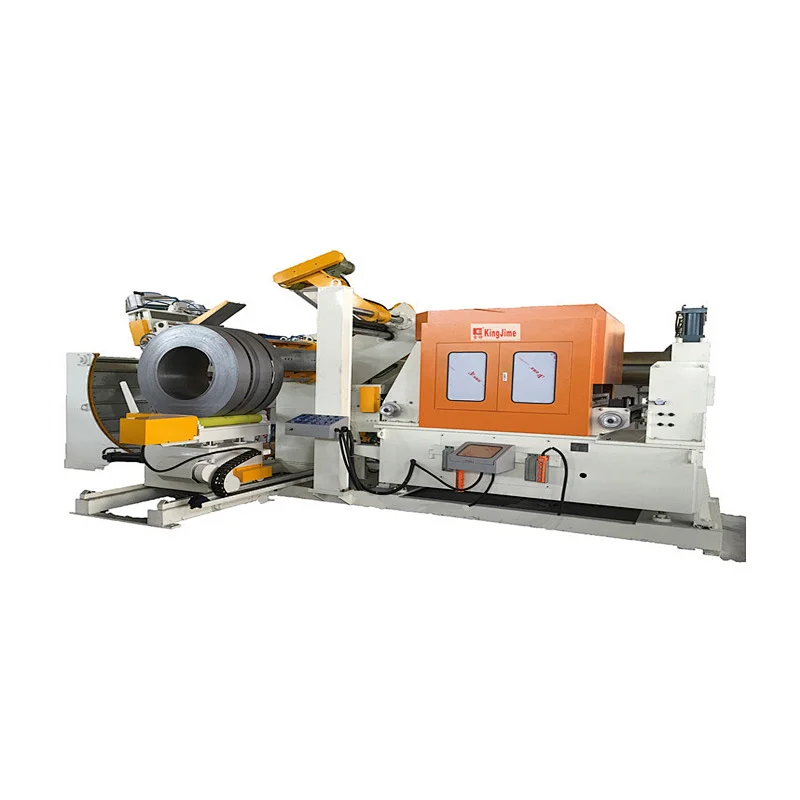

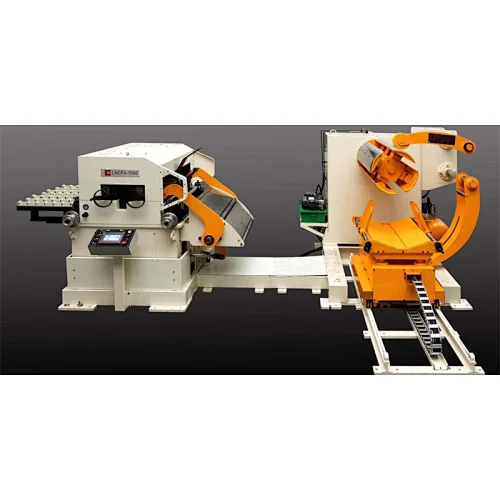

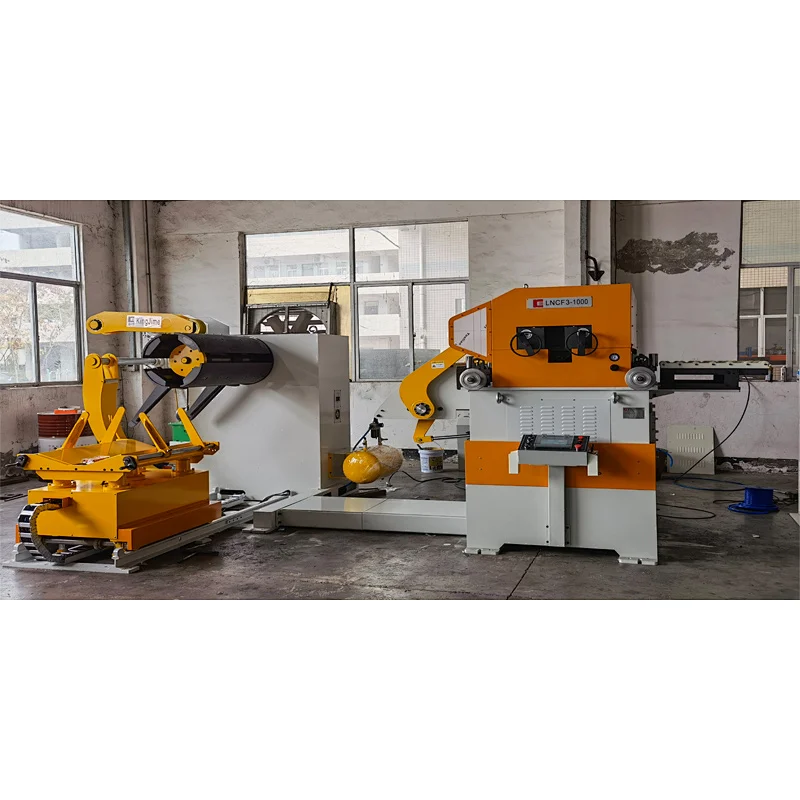

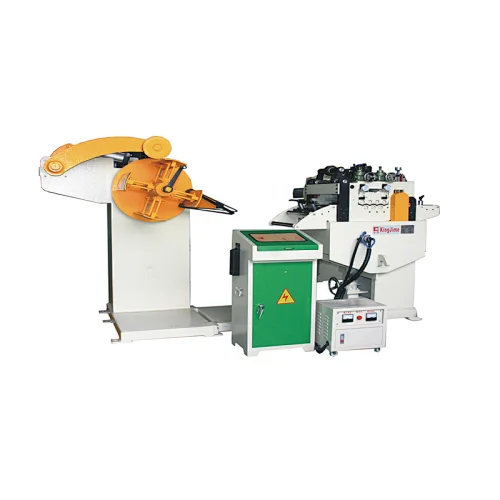

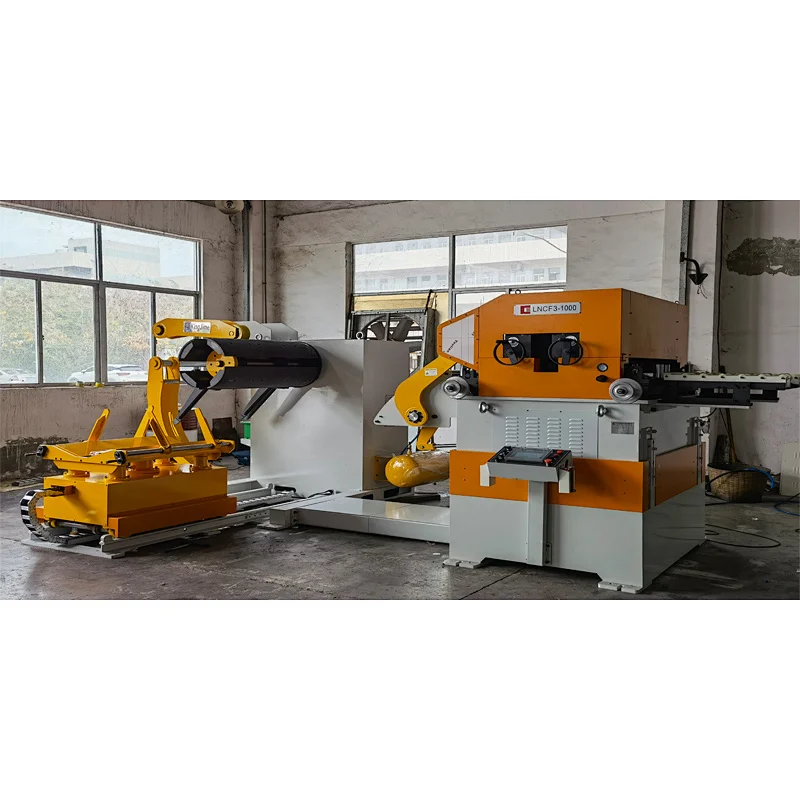

LNCF3 series 3 in 1 Straightener Feeder&Uncoiler
LNCF3 series 3 in 1 Straightener Feeder&Uncoiler
LNCF3 series 3 in 1 Straightener Feeder&Uncoiler
LNCF3 series 3 in 1 Straightener Feeder&Uncoiler
LNCF3 series 3 in 1 Straightener Feeder&Uncoiler
LNCF3 series 3 in 1 Straightener Feeder&Uncoiler
LNCF3 series 3 in 1 Straightener Feeder&Uncoiler
LNCF3 series 3 in 1 Straightener Feeder&Uncoiler
LNCF3 series 3 in 1 Straightener Feeder&Uncoiler

LNCF3 series 3 in 1 Straightener Feeder&Uncoiler

Model NO.
TNCF3
Price:
US $ 35600.00-86000.00 / set
Delivery
EXW, FOB, CIF
Minimum order quantity
1 set
Supply Ability
300 set / Year
Country of Origin
Guangdong China
Stock Time
30 Days
Quantity:

Standard Accessory:

1. Upper roller adjustment by digital watch.

2. Coil width adjusted by double handle wheel with precise screw.

3. Pass line can be adjusted by the lifter driven by motor.

4. Uncoiler with four"A"steel back gauges

5. Pinch roll and straightener roll material: high strength alloy bearing steel with hard chrome plating

6. Pneumatic coil arm device.

7. Mitsubishi PLC control feeding program from Japan.

8. Feed accuracy controlled by Japan YASKAWA servo motor with precise planetary reducer.

机型model

LNCF3-400

LNCF3-500

LNCF3-600

LNCF3-800

LNCF3-1000

LNCF3-1300

最大材料宽度.max.material width(mm)

400

500

600

800

1000

1300

材料厚度material thickness(mm)

0.3-3.2mm

料架载重coil weight(KG)

3000

5000

5000

5000/8000

8000/10000

卷料内径coil inner Diameter(mm)

508mm

卷料外径coil outer diameter(mm)

1500mm

扩张方式(expansion method)

油压扩张hydraulic expansion

料架感应方式(uncoiler sensor)

光电感应photo sensor

台车coil car

选配optional

剪板机shear

选配optional

整平速度Speed(m/min)

20m/min
