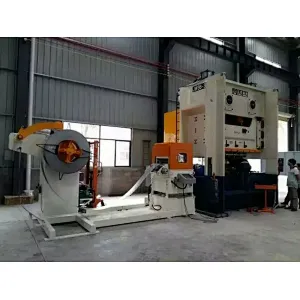

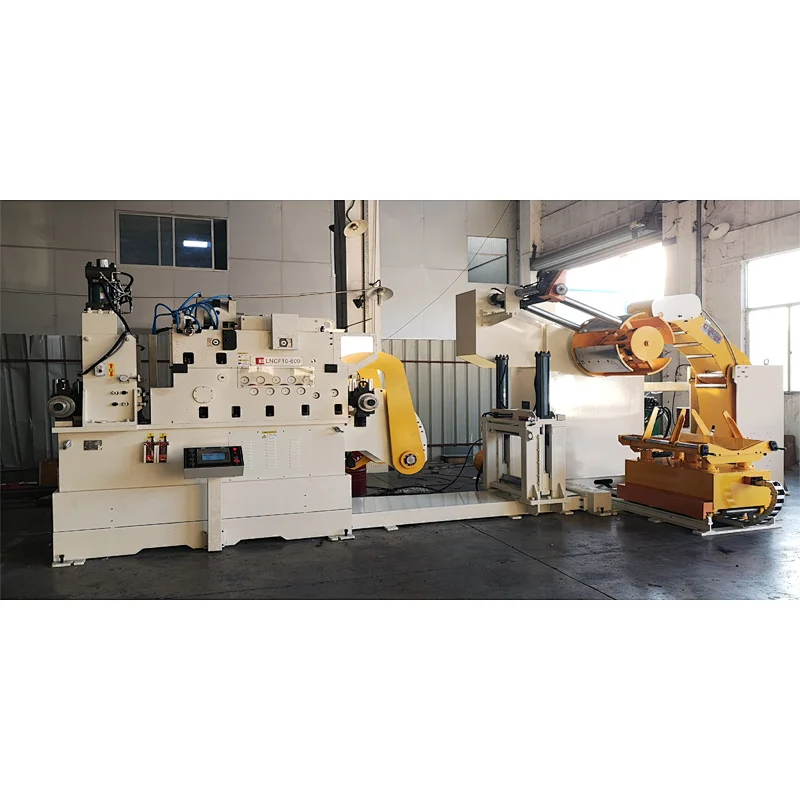

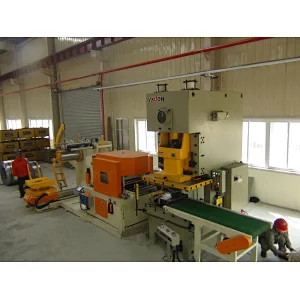

LNCF12 series 3 in 1 decoiler straightener feeder
LNCF12 series 3 in 1 decoiler straightener feeder
LNCF12 series 3 in 1 decoiler straightener feeder
LNCF12 series 3 in 1 decoiler straightener feeder
LNCF12 series 3 in 1 decoiler straightener feeder
LNCF12 series 3 in 1 decoiler straightener feeder
LNCF12 series 3 in 1 decoiler straightener feeder
LNCF12 series 3 in 1 decoiler straightener feeder
LNCF12 series 3 in 1 decoiler straightener feeder

LNCF12 series 3 in 1 decoiler straightener feeder

Model NO.
TNCF12
Price:
US $ 48600.00-98600.00 / set
Delivery:
EXW, FOB, CIF
Minimum order quantity:
1 set
Supply Ability:
300 set / Year
Country of Origin:
Guangdong China
Stock Time:
30 Days
Quantity:

3 in 1 combined decoiler leveler feeder for stamping metal parts,sheet automatic 3 in 1 decoiler and straightener,metal stamping press feeder,press feeding line,3 in 1 coil processing line,leveling feeder line 3 in 1,3 in 1 feeder,coil processing equipment

1. Upper roller adjustment by digital watch.
2. Coil width adjusted by double handle wheel with precise scre word.
3. Pass line can be adjusted by the lifter driven by motor.
4.Coil side guide use one set hollow rolls mechanical back gauge device.
5. Pinch roll and straightener roll material:high-strength alloy bearing steel withhard chrome plating.
6.Hydraulic coil arm device.
7. Motorized Snuber roll.
8.Hydraulic guider.
9. Hydraulic peeler table.
10. Mitsubishi PLC control feeding program from Japan.
11. Feed accuracy controlled by Japan YASKAWA servo motor with precise planetary reducer.

机型model

LNCF12-400

LNCF12-600

LNCF12-800

LNCF12-1000

LNCF12-1300

LNCF12-1600

最大材料宽度.max.material width(mm)

400

600

800

1000

1300

1600

材料厚度material thickness(mm)

1.2-12mm

料架载重coil weight(KG)

5000/8000

8000/10000/15000

卷料内径coil inner Diameter(mm)

610mm

卷料外径coil outer diameter(mm)

1500mm

扩张方式(expansion method)

油压扩张hydraulic expansion

料架感应方式(uncoiler sensor)

光电感应photo sensor

台车coil car

选配optional

剪板机shear

选配optional

整平速度Speed(m/min)

20m/min
