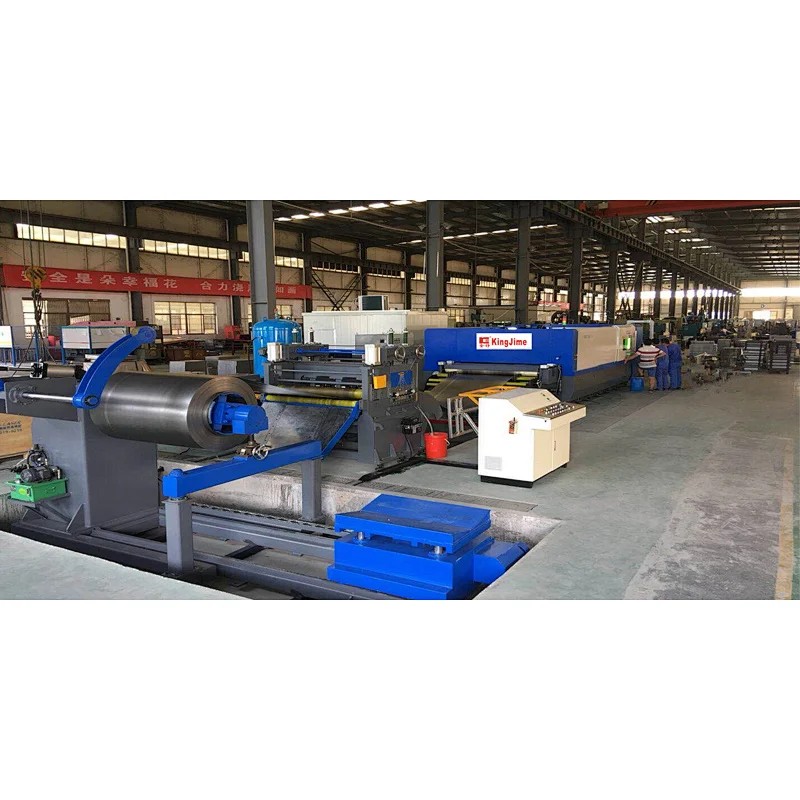

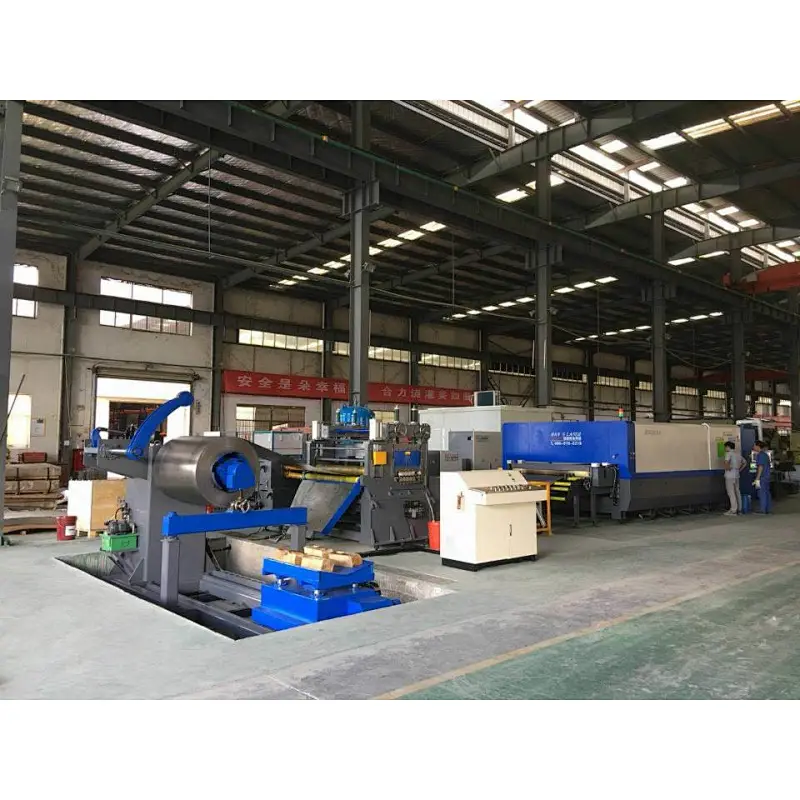

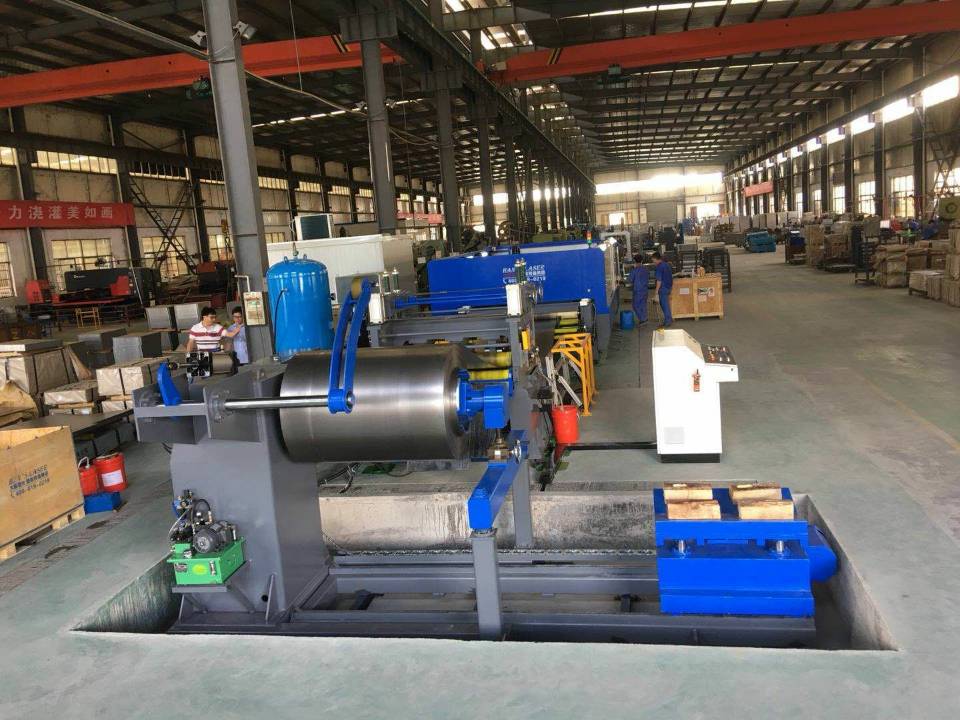

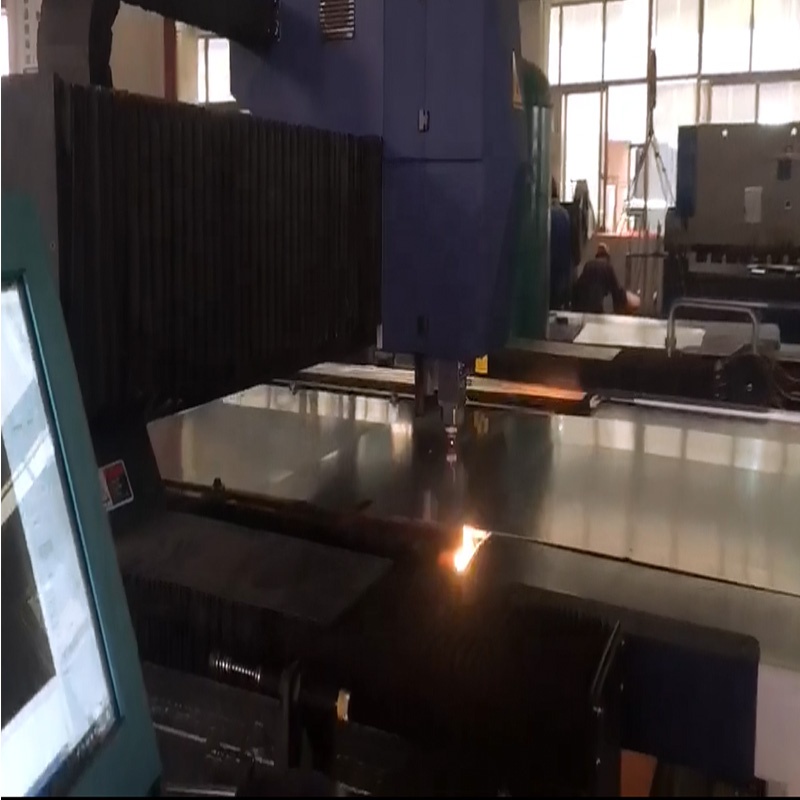

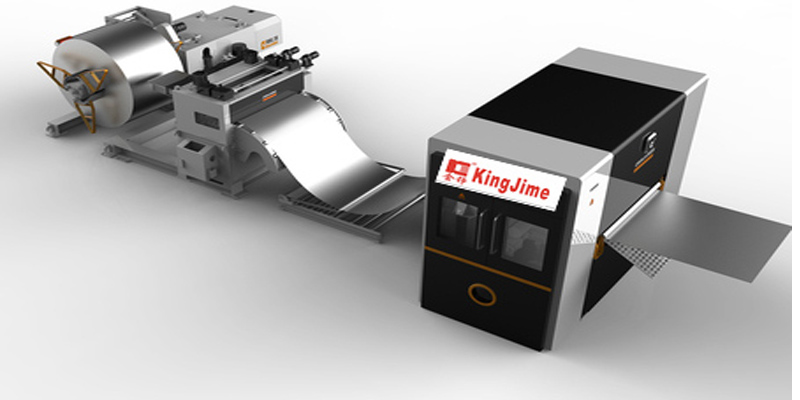

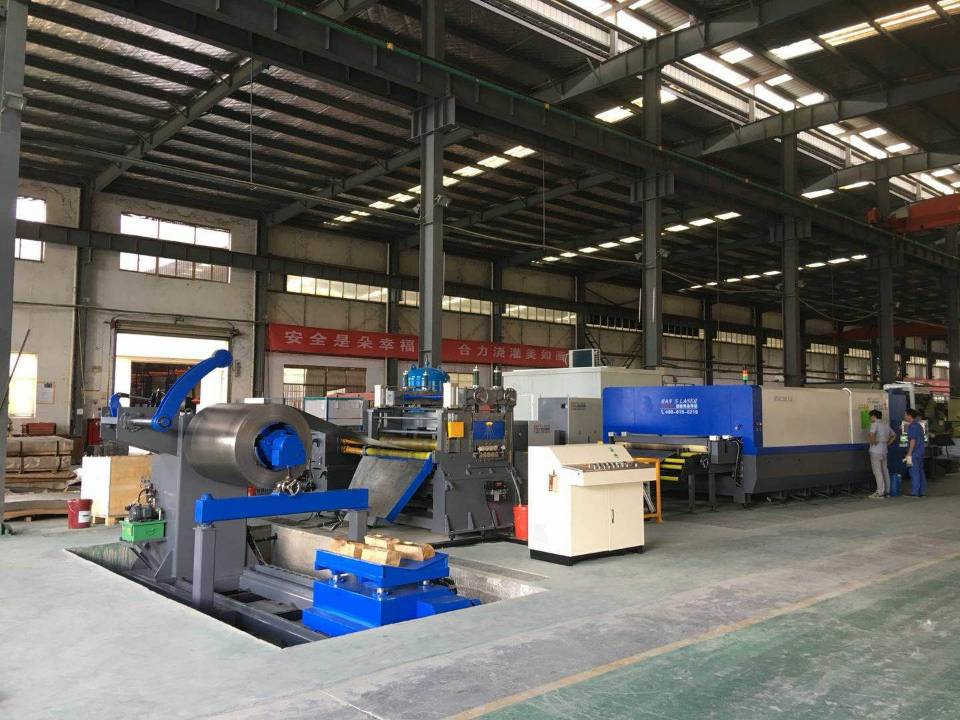

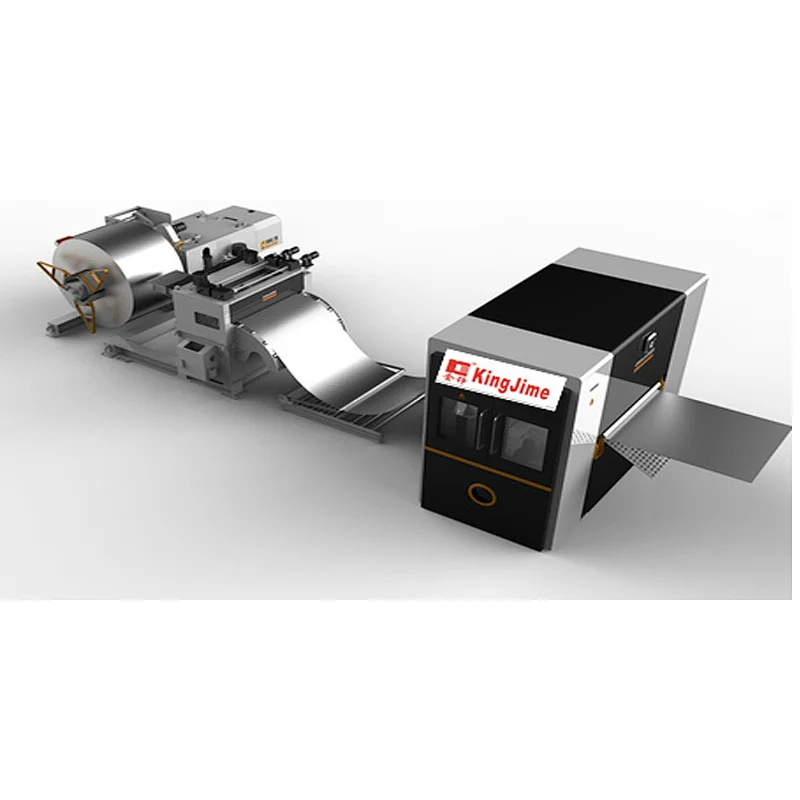

Continuous Laser Blanking Production Line With Rolling Gear Plate
Continuous Laser Blanking Production Line With Rolling Gear Plate
Continuous Laser Blanking Production Line With Rolling Gear Plate
Continuous Laser Blanking Production Line With Rolling Gear Plate
Continuous Laser Blanking Production Line With Rolling Gear Plate
Continuous Laser Blanking Production Line With Rolling Gear Plate
Continuous Laser Blanking Production Line With Rolling Gear Plate
Continuous Laser Blanking Production Line With Rolling Gear Plate
Continuous Laser Blanking Production Line With Rolling Gear Plate

Continuous Laser Blanking Production Line With Rolling Gear Plate

Model NO.
KJL02
Price:
US $ 295600.00-452300.00 / set
Delivery
EXW, FOB, CIF
Minimum order quantity
1 set
Supply Ability
10 set / Year
Country of Origin
Guangdong China
Stock Time
90 Days
Quantity:

The line is controlled by NC servo system. It has PLC controlled the length feed measurement. The information of length, and speed can be input to the PLC systems. When the need feed length is reached, the machine can feed automatically. The line speed can be adjusted, It has a feeder with high precision.

Product Features

1.Step or continuous cutting

2.Replacing the static table of common cutting machine, the gear plate table of cutting machine can realize rollingfeeding, and effectively improve the feeding and cutting efficiency

3.Multi beam and multi cutting head, efficient and fast cutting

4.The cutting process can be simply connected with the uncoiling and leveling process of steel coil to form a smoothand coherent production line

5.Automatic material picking and waste rolling improve material utilization rate

Applicable Field:

Steel distribution, common sheet metal blanking, household appliances and other industries with high requirements for production efficiency

Project Parameters

Model

KJL-002

Suitable material

Aluminum,steel,stainless steel

Material thickness

0.5-3.2mm

Material width

300-2000mm

Flatness accuracy

1.5mm/m2

Feeding speed

0-30m/min

Laser power

1500-6000W

Positioning accuracy

0.03mm
